Gate Valve

Product Description Forged Steel Globe Valves designed for reliable flow regulation, throttling and shut-off in high-pressure industrial piping systems. Manufactured from high-quality forged steel, these valves provide mechanical strength, pressure resistance and dependable sealing performance in demanding operating conditions. Available in various pressure classes, material grades and end connections to meet industrial process requirements. Technical Specifications Product Name - Forged Steel Globe Valve Valve Type - Globe Valve Body Material - ASTM A105 Forged Carbon Steel Alternative Materials - ASTM A182 F304 / F316 / F11 / F22, subject to availability Size Range - ½″ to 2″, depending on design Pressure Class - ASME Class 800 / 1500 / 2500, design dependent End Connection - Socket Weld (SW) / Screwed (NPT/BSP), model dependent Bonnet Type - Bolted Bonnet / Pressure Seal, design dependent Disc Type - Conventional Disc / Plug Type, design dependent Stem Design - Rising Stem Operation - Handwheel Operated Seat Design - Metal-to-Metal Seating Trim Material - As per service and manufacturer specification Design Standard - API 602 / ASME B16.34, as applicable Socket Weld Ends -ASME B16.11, where applicable Threaded Ends - ASME B1.20.1 for NPT threads, where applicable Inspection and Testing - API 598, where applicable Key Features High-strength forged steel construction Suitable for high-pressure service Reliable flow regulation and shut-off Metal-to-metal seating arrangement Compact and robust design Available with socket weld and threaded connections Suitable for demanding industrial applications Applications Oil and gas industries Refineries and petrochemical plants Chemical processing industries Power generation plants Steam and boiler systems High-pressure process pipelines Industrial utility and fluid control systems

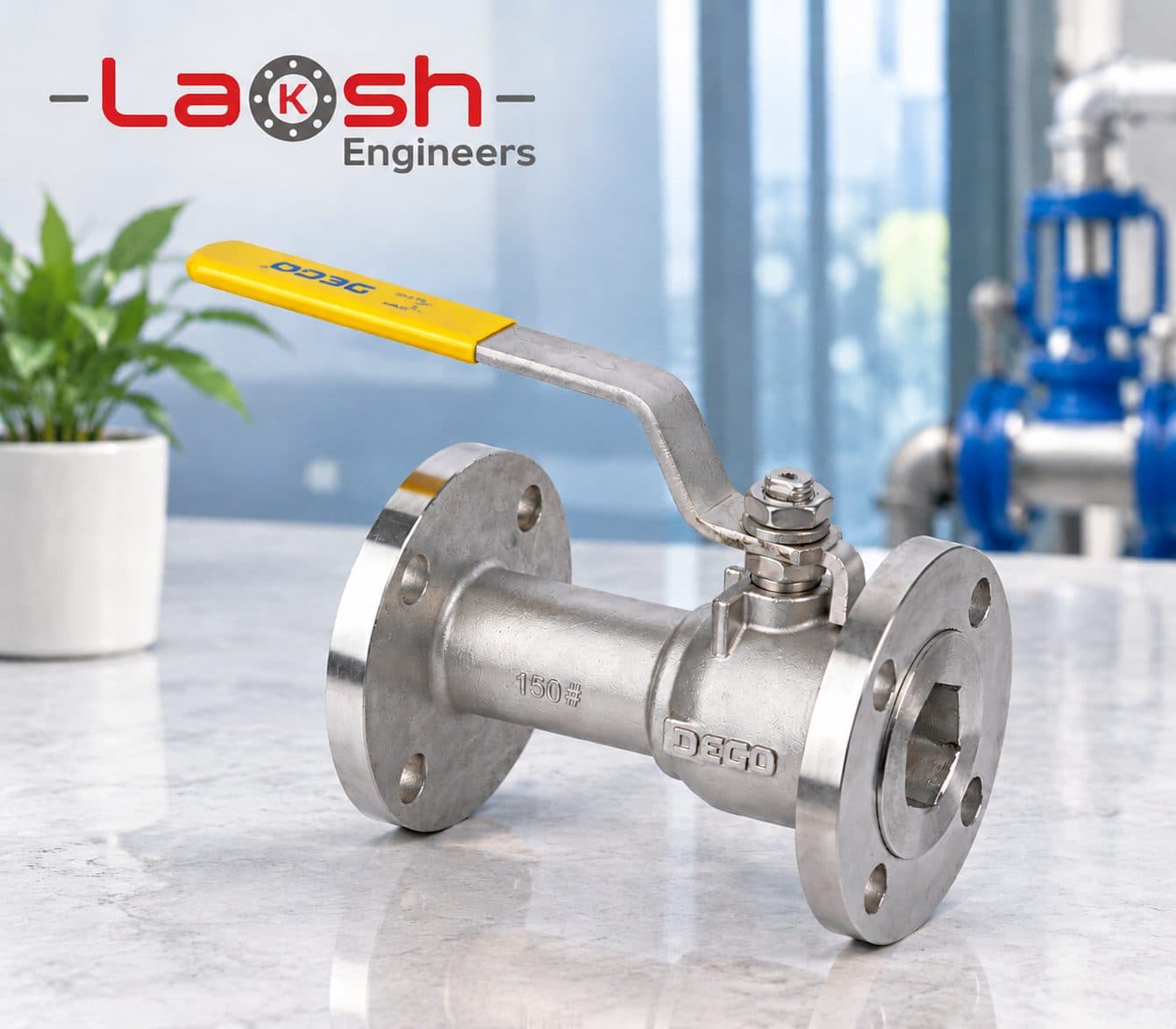

A Single Piece Ball Valve is a compact, one-piece body valve designed for reliable on/off flow control . Its full-bore or reduced-bore ball mechanism provides quick operation with minimal pressure drop and good sealing performance. Typical specifications: Body : SS 304 / SS 316 / Carbon Steel Connection : Threaded / Socket Weld / Flngeded Size : 1/2 " to 4" (depending on design) Pressure : 150# / 300# or as per model Seat : PTFE / RPTFE Operation : Lever Handle Bore : Full Bore / Reduced Bore Applications : Chemical, Pharma, Petrochemical, Hydraulic, Pneumatic, Water & Industrial service

Ball Valve 2 Piece Design Flange End is a robust industrial isolation valve designed for reliable on/off flow control in process piping systems. Its two-piece body construction provides a strong, serviceable design, while the flanged ends ensure secure and leak-resistant connection to the pipeline. Typical Specifications Type: 2-Piece Ball Valve End Connection: Flanged End Body: SS 304 / SS 316 / Carbon Steel / Cast Iron Ball: SS 202 / SS 304 / SS 316 Seat: PTFE / GFT Bore: Full Bore / Reduced Bore Pressure Class: Class 150 / 300 Operation: Lever / Pneumatic Acuator Design Std. : As Per BS 5331 / API 6D Testing Std. : As Per BS 5146 / API 598 Design Std. : As Per ANSI B 16.10 Flange Std. ASME B16.5 / DIN Size: As 1/2" To 4" And As Per Your Requirement Service: Industrial fluids, water, air, oil, gas and compatible chemicals

Ball Valve 3 Piece Design Flange End is a robust industrial isolation valve designed for reliable on/off flow control in process piping systems. Its two-piece body construction provides a strong, serviceable design, while the flanged ends ensure secure and leak-resistant connection to the pipeline. Typical Specifications Type: 3-Piece Ball Valve End Connection: Flanged End Body: SS 304 / SS 316 / Carbon Steel / Cast Iron Ball: SS 202 / SS 304 / SS 316 Seat: PTFE / GFT Bore: Full Bore / Reduced Bore Pressure Class: Class 150 / 300 Operation: Lever / Pneumatic Acuator Design Std. : As Per BS 5331 / API 6D Testing Std. : As Per BS 5146 / API 598 Design Std. : As Per ANSI B 16.10 Flange Std. ASME B16.5 / DIN Size: As 1/2" To 4" And As Per Your Requirement Service: Industrial fluids, water, air, oil, gas and compatible chemicals
