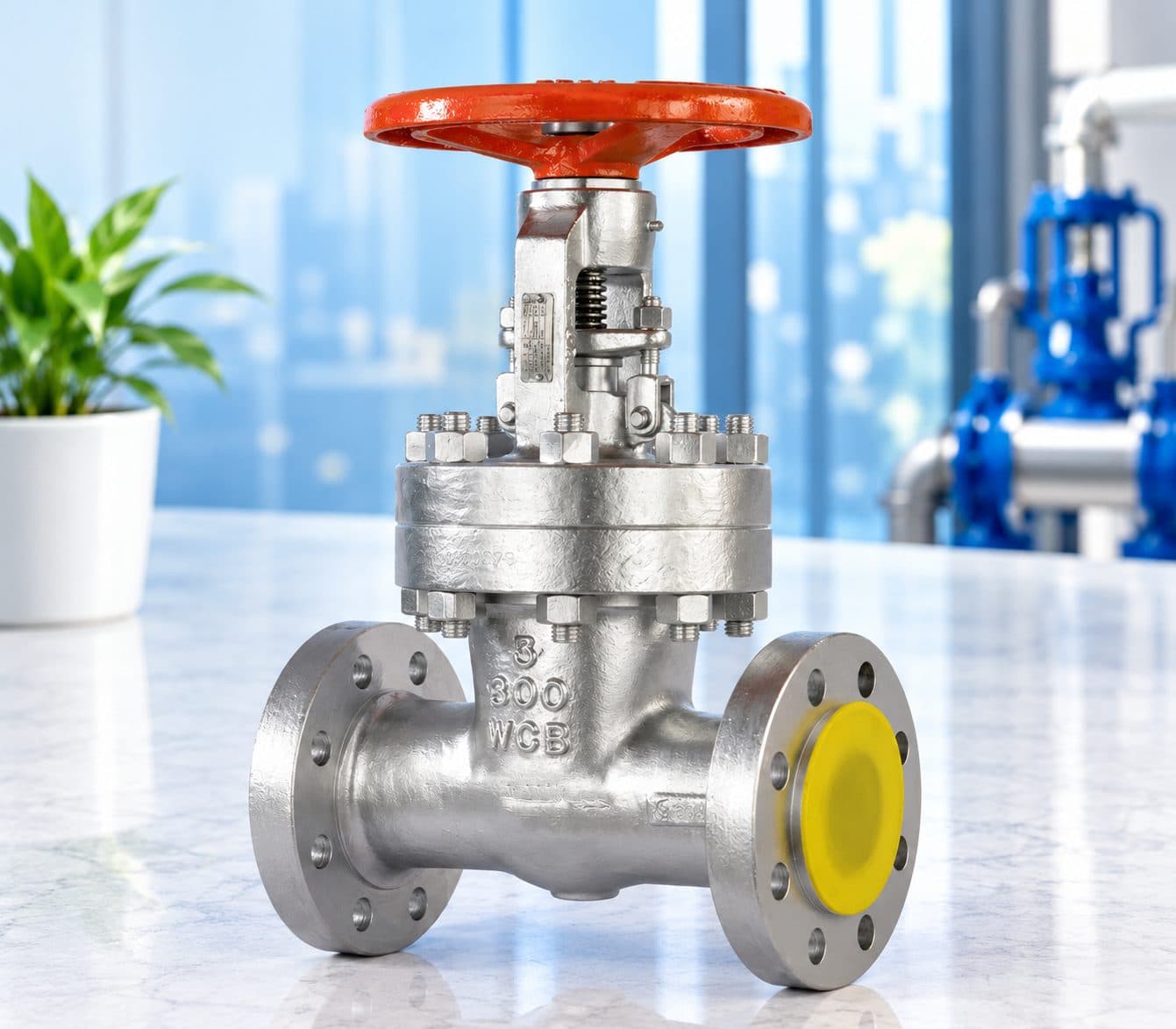

Gate Valve
Product Description Gate Valves designed to provide reliable on/off flow control in industrial pipeline systems. Gate valves operate by raising or lowering a gate to allow or stop fluid flow, offering low flow resistance when fully open. Available in a wide range of body materials, sizes, pressure ratings and end connections to meet the requirements of industrial and process applications. Technical Specifications Product Name - Gate Valve Valve Type - Gate Valve Body Material - Cast Iron (CI) / Ductile Iron (DI) / Cast Steel / Stainless Steel / Forged Steel Size Range - ½″ to 48″, depending on type and design Pressure Class - PN10 / PN16 / PN25 / ASME Class 150 / 300 / 600, model dependent End Connection - Flanged / Screwed / Socket Weld / Butt Weld Operation - Handwheel / Gear Operated / Electric Actuator Stem Design - Rising Stem / Non-Rising Stem Wedge Type - Solid Wedge / Flexible Wedge / Split Wedge, design dependent Seat Type - Metal Seated / Resilient Seated, model dependent Bonnet Type - Bolted Bonnet / Pressure Seal / Screwed Bonnet Face-to-Face - As per applicable valve standard Design Standard - API 600 / API 602 / API 603 / AWWA C515, as applicable Flanged End Standard - ASME B16.5 / ASME B16.47 / EN 1092-1, as applicable Testing Standard - API 598 / applicable product standard Suitable Media - Water, oil, gas, steam and compatible process fluids, subject to valve design Key Features Reliable on/off flow isolation Low pressure drop when fully open Robust construction for industrial service Available in multiple materials and pressure classes Various end connections and operating options Manual and actuator-operated configurations Suitable for a wide range of industrial applications Applications Oil and gas industries Chemical and petrochemical plants Water treatment and distribution systems Power generation plants Steam and boiler pipelines Refineries and process industries Industrial utility systems General-purpose pipeline isolation
